6AB0460Txx-xxxx

6AB0460Txx-xxxx is a I-type three-level, six-channel, medium power, high isolation voltage, compact, high-reliability driver designed for medium power, high reliability applications based on BronzeTechnologies’ ASIC chip.

6AB0460Txx-xxxx driver is ideal for ANPC and NPC1 I-type three-level topologies constructed with IGBT modules up to1700V. It is compatible with IGBT modules in 62mm, EconoDual?3, PrimePack?3 and other packages. The driving core board is ?xed on the power module case or specially designed ?xed base to work with the driver board.

Bronze_6AB0460Txx-xxxx_V1.0

Typical Applications Features Key parameters

Typical Applications

Energy storage converters

Wind power converters

Solar inverters

Features

Six-channel IGBT driver	Maximum power device voltage: 1700V	Single-channel driving power: 4W, peak current ±60A
Power supply input: +15V	Compatible with multiple IGBT modules: 62mm, EconoDual?3, PrimePack?3	Supports ANPC and NPC1 I-type three-level multi-parallel topologies
Integrated isolated DC/DC power supply	Integrated primary/secondary power undervoltage lockout	Integrated PWM interlock function
Integrated shutdown sequence management	Integrated VCE short-circuit protection	Integrated soft shutdown
Integrated NTC detection	Optional Features: Fault di?erentiation and intelligent management	Optional Features: Narrow pulse suppression
Optional Features: Multi-stage shutdown and switching sequence

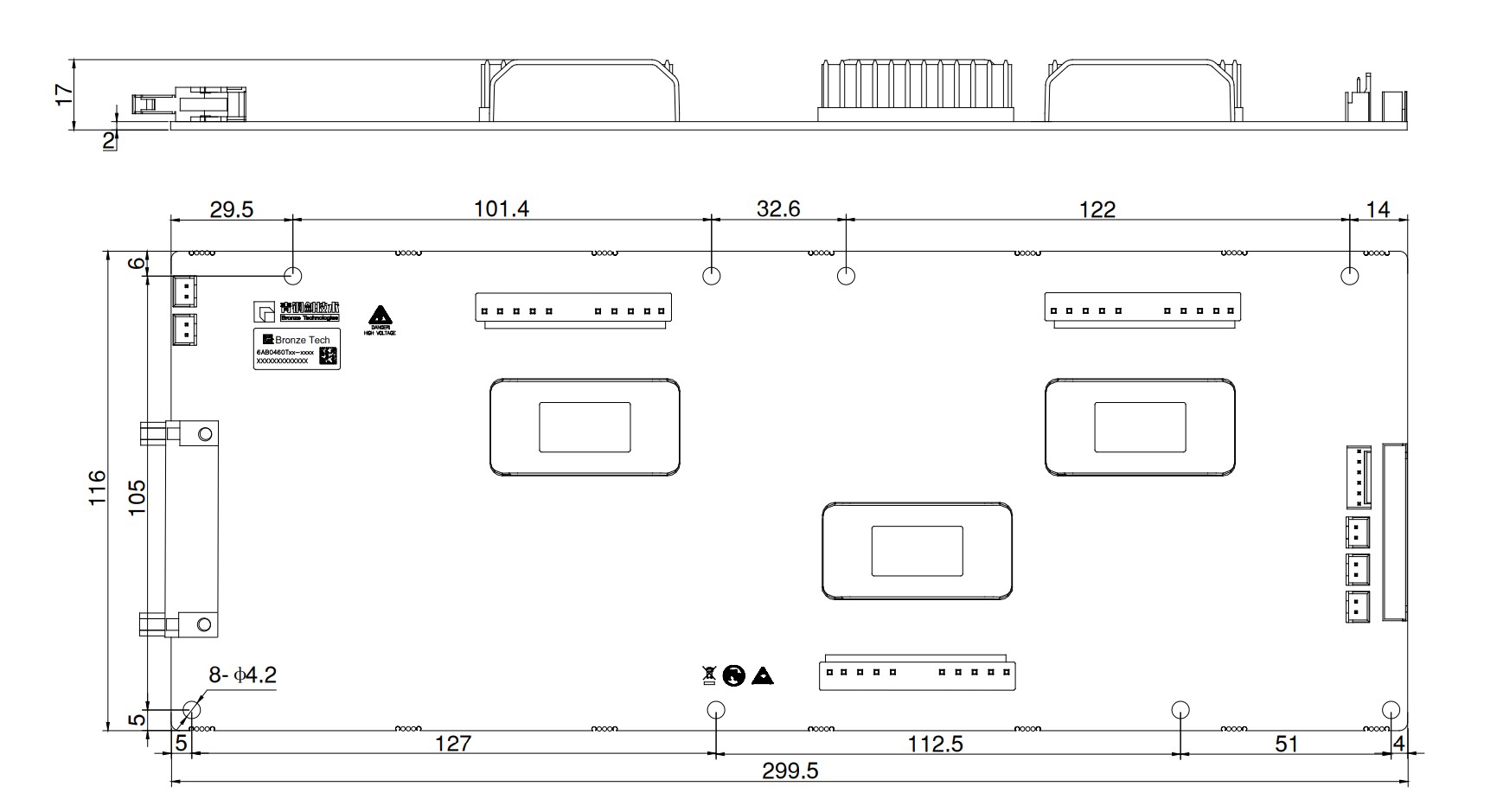

Mechanical Structure

Get a quick overview of overall system functionality.

View full size

Block Diagram
